Z-box storage container
Our Z-Box is designed by self storage experts to be outdoors 365 days a year. The durable and well-secured containers look neat, are easy to use and come in six different models. Ranging from containers with one central access door to containers with as many as eight doors. As a result, they can be completely divided into different compartments that can be easily separated from each other.
The Z-Box storage container is ideal if you are looking for ways to offer multifunctional outdoor storage to your customers.
Z-Box models

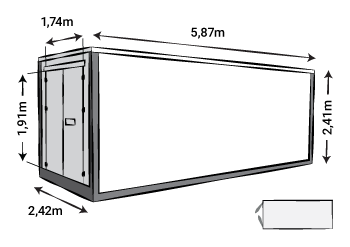

Model 1
Sizes and weights
Outsized incl. Roof
Width: 2.42m Depth: 5.87m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 2.28m Depth: 5.72m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Empty: 1410kg Load capacity: 4535kg

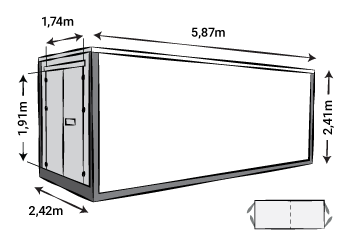

Sizes and weights
Outsized incl. Roof
Width: 2.42m Depth: 5.87m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 2.28m Depth: 5.72m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Empty: 1650kg Load capacity: 4535kg
Inner size per compartment (2x)
Width: 2.28m Depth: 2.86m Height: 2.23m Number of m²: 6.5m² Number of m³: 14.5m³
Sizes and weights
Outsized incl. Roof
Width: 5.87m Depth: 2.42m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 5.72m Depth: 2.28m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Empty: 1775kg Load capacity: 4535kg
Inner size per compartment (2x)
Width: 2.86m Depth: 2.28m Height: 2.23m Number of m²: 6.5m² Number of m³: 14.5m³

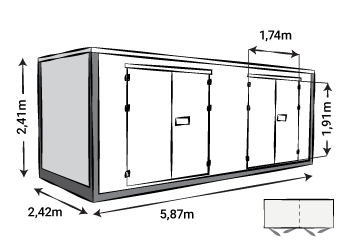

Sizes and weights
Outsized incl. Roof
Width: 5.87m Depth: 2.42m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 5.72m Depth: 2.28m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Empty: 1805kg Load capacity: 4535kg
Inner size compartment l.
Width: 1.52m Depth: 2.28m Height: 2.23m Number of m²: 3.5m² Number of m³: 7.7m³
Inner size compartment m.
Width: 1.45m Depth: 2.28m Height: 2.23m Number of m²: 3.3m² Number of m³: 7.4m³
Inner size compartment r.
Width: 2.66m Depth: 2.28m Height: 2.23m Number of m²: 6.1m² Number of m³: 13.5m³

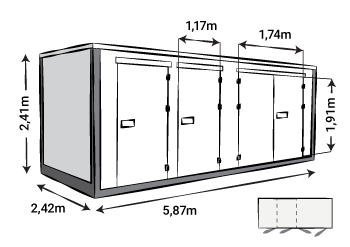

Sizes and weights
Outsized incl. Roof
Width: 5.87m Depth: 2.42m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 5.72m Depth: 2.28m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Empty: 1835kg Load capacity: 4535kg
Inner size compartment l.
Width: 1.49m Depth: 2.28m Height: 2.23m Number of m²: 3.4m² Number of m³: 7.6m³
Inner size compartment lm.
Width: 1.37m Depth: 2.28m Height: 2.23m Number of m²: 3.1m² Number of m³: 7.0m³
Inner size compartment rm.
Width: 1.37m Depth: 2.28m Height: 2.23m Number of m²: 3.1m² Number of m³: 7.0m³
Inner size compartment r.
Width: 1.49m Depth: 2.28m Height: 2.23m Number of m²: 3.4m² Number of m³: 7.6m³

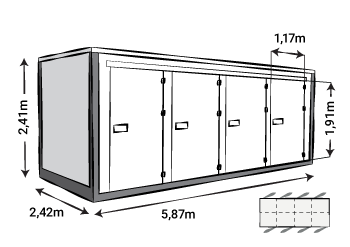

Sizes and weights
Outsized incl. Roof
Width: 5.87m Depth: 2.42m Height: 2.41m Number of m²: 14.2m² Number of m³: 34.2m³
Inside size
Width: 5.72m Depth: 2.28m Height: 2.23m Number of m²: 13.0m² Number of m³: 29.1m³
Weight
Load capacity: 4535kg
Inner size compartment l.
Width: 1.49m Depth: 1.13m Height: 2.23m Number of m²: 1.7m² Number of m³: 3.8m³
Inner size compartment lm.
Width: 1.37m Depth: 1.13m Height: 2.23m Number of m²: 1.5m² Number of m³: 3.5m³
Inner size compartment rm.
Width: 1.37m Depth: 1.13m Height: 2.23m Number of m²: 1.5m² Number of m³: 3.5m³
Inner size compartment r.
Width: 1.49m Depth: 1.13m Height: 2.23m Number of m²: 1.7m² Number of m³: 3.8m³
Standard dimensions (l*w*h) 5.87 x 2.42 x 2.41m.
When purchasing multiple containers, the size and color of the Z-Box can be customized to your needs. Labeling, power connection and installation of solar panels on the Z-Box are also among the options. The Z-Box is available in several models, each with a different configuration. This creates the opportunity to optimize the layout of your storage yard, and therefore achieve the highest possible return for your outdoor area.

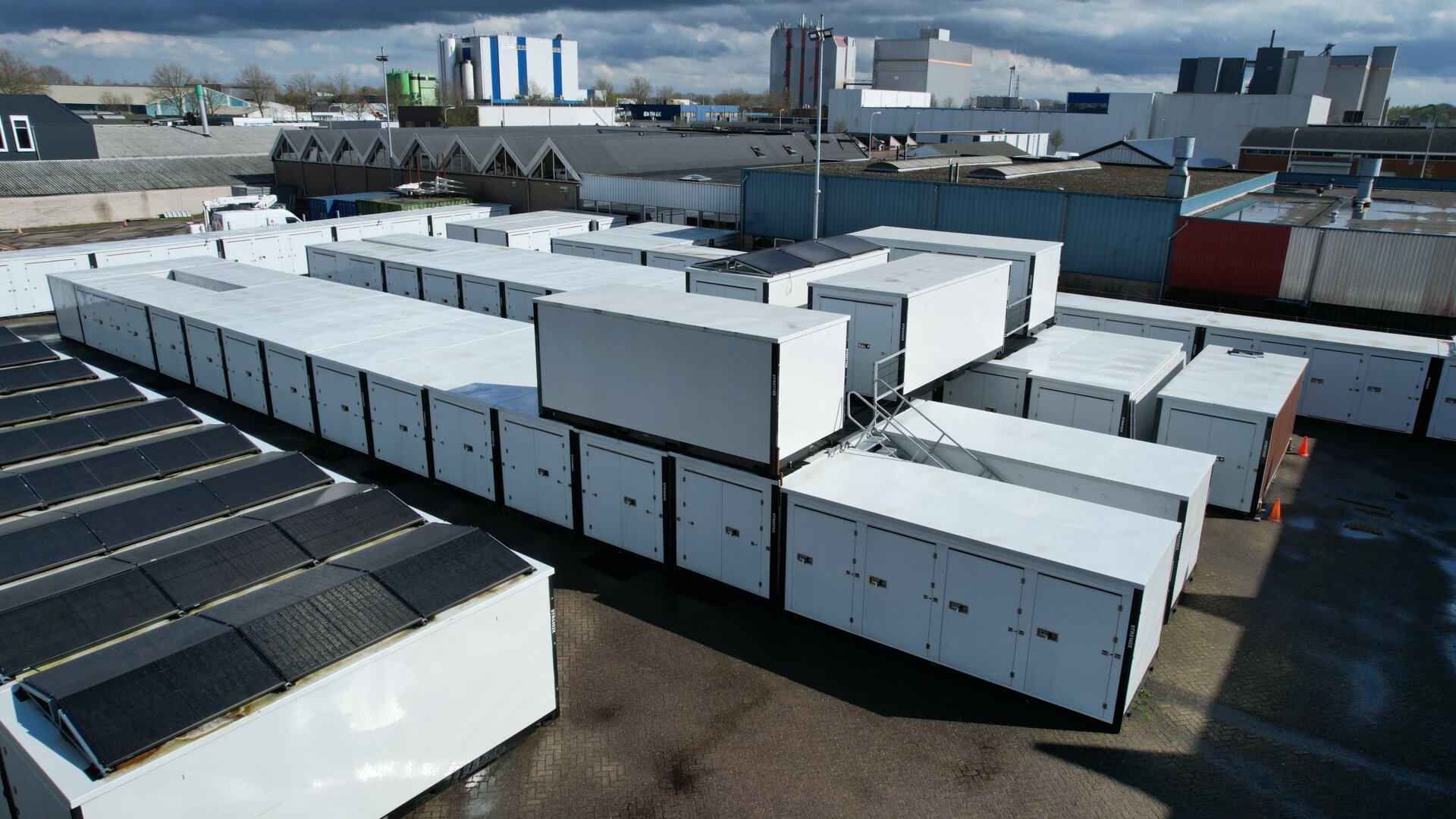

Come and see in Deventer
Specifications
– Fully insulated
– Ventilated
– Free of condensation
– Divisible into multiple units
– Well secured
– Free of pests
– Easy to transport with BE driver’s license
– Weatherproof
– Easy and quick to build
– Folds up and stacks
– Easy to move with forklift truck
Sustainability
Reduce
Reuse
Recycle
The Z-Box’s flat design significantly reduces CO₂ emissions by optimizing transportation.
Each 40ft shipping container can carry up to 12 Z-Boxes, minimizing transportation and reducing the carbon footprint.
The individual components of the Z-Box are designed for easy disassembly, and can be reused for maintenance or repairs.
This extends the life of the Z-Box and reduces material usage.
Our containers are fully recyclable.
The materials can be easily separated so they are not thrown away at the end of their life cycle.
Sustainability
Reduce
The Z-Box’s flat design significantly reduces CO₂ emissions by optimizing transportation. Each 40ft shipping container can carry up to 12 Z-Boxes, minimizing transportation and reducing the carbon footprint.
Reuse
The individual components of the Z-Box are designed for easy disassembly, and can be reused for maintenance or repairs. This extends the life of the Z-Box and reduces material usage.
Recycle
Our containers are fully recyclable. The materials can be easily separated so they are not thrown away at the end of their life cycle.

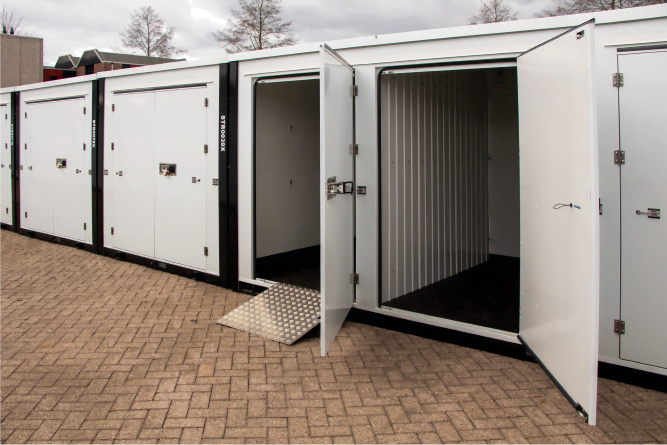

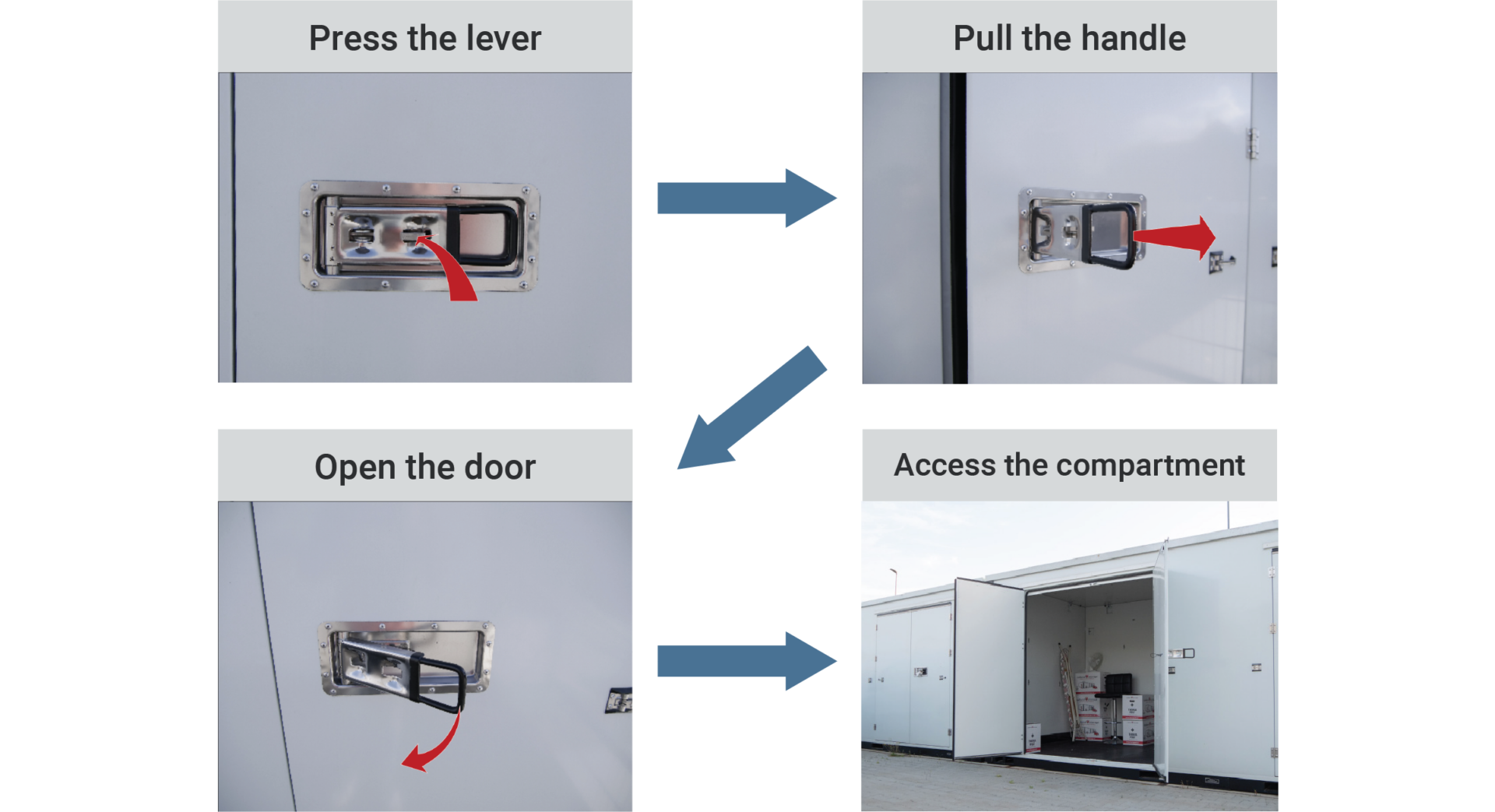

User-friendly access
Z-Box doors are easy to use. Ease of use was therefore factored into the design of our Z-Box container. With its innovative design, accessing stored contents is as easy as unlocking the lock, and opening the door.
See in the illustration how the door system works.
